W260R
EFFICIENT SNOW BLOWER WITH HORIZONTAL SCREW FOR REAL ESTATE MAINTENANCE

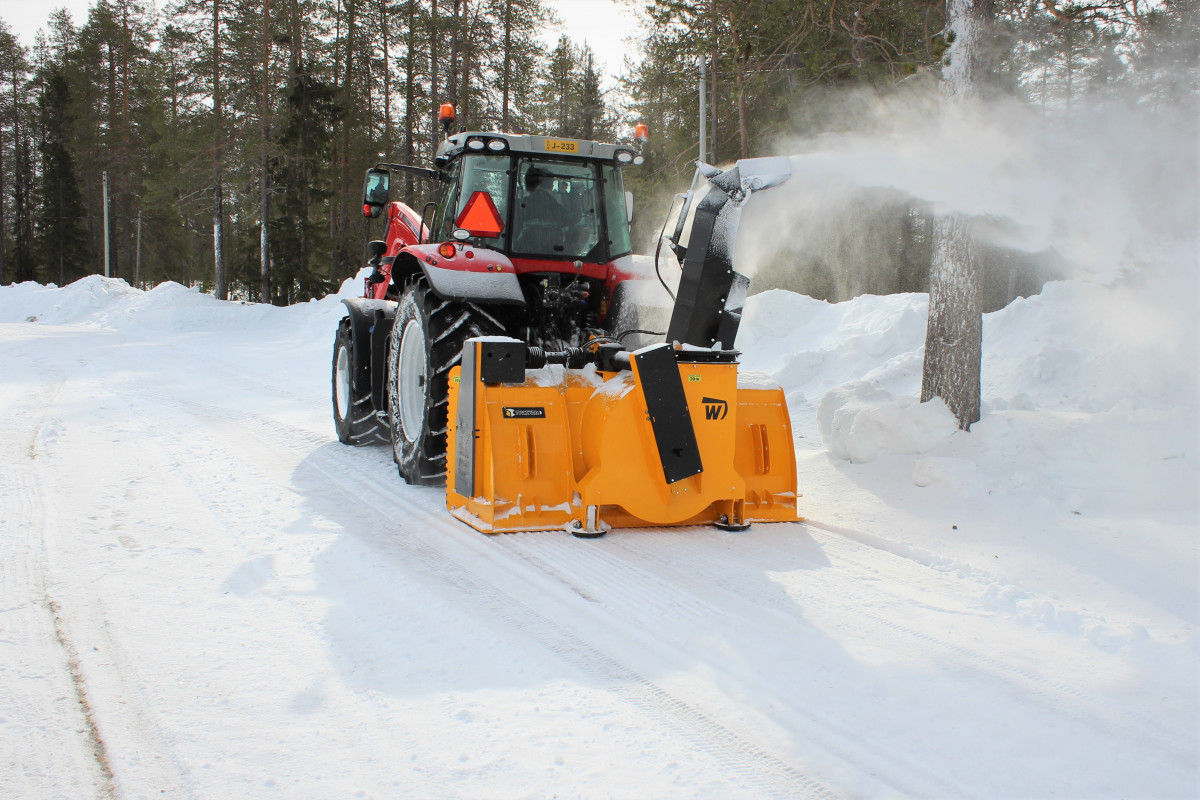

The W260R with horizontal screw is an excellent choice for clearing yards and streets. Screw feed is reliable even under difficult snow conditions, if the snow is wet or has fallen in abundant amounts at a time. Owing to the short frame structure, it is well suitable for use in tight yard areas and along walls. Hydraulic turning of the horn allow precise control of the snow jet.

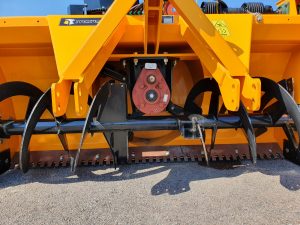

High-quality S355 structural steel is used as the frame material and the frame structure is strongly enclosed. The threaded part of the feed screw is made of 400HB Hardox. The large, 100cm throw chamber and throw blades are made of 500HB Hardox and the same applies to wear blades and support legs.
W260R is equipped with reduction gear and comes with two adjustable support legs and LED lights as standard.
Surface treatment: shot blasting and powder-coating, which result in durable and slippery coating for snow throwing.
TECHNICAL SPECIFICATIONS
| Working width: | 260 cm |
| Weight | 1,570 kg |
| Ploughing wing | 100 cm |
| Throwing impeller | 96 cm |
| Feed rotor | horizontal screw feed |
| Shaft | 80 mm, bearings 2 pcs. UCF216 |
| Wear blades | 12 mm 500HB |
| Splined shaft | 1 3/4″/ recommended articulated shaft, size class Series 9 |
| PTO | 540 RPM |
| Mounting | lifting device of cat. 2 or 3 |
| Power demand | 120 hp |
| Standard equipment | reduction gear, support legs 2 pcs., LED lights |
| Optional equipment | automatic clutch shaft, hard metal blades, support wheels |
Photos and videos
Additional equipment
Automatic clutch shaft
Hard metal blades
